Tilton Dual MC Setup

Post  gt1scca on Tue Jun 16, 2009 2:56 pm







Has anyone researched the Tilton Dual MC setup? nosubt2 is where? He used to be @ PHB, haven't heard lately...

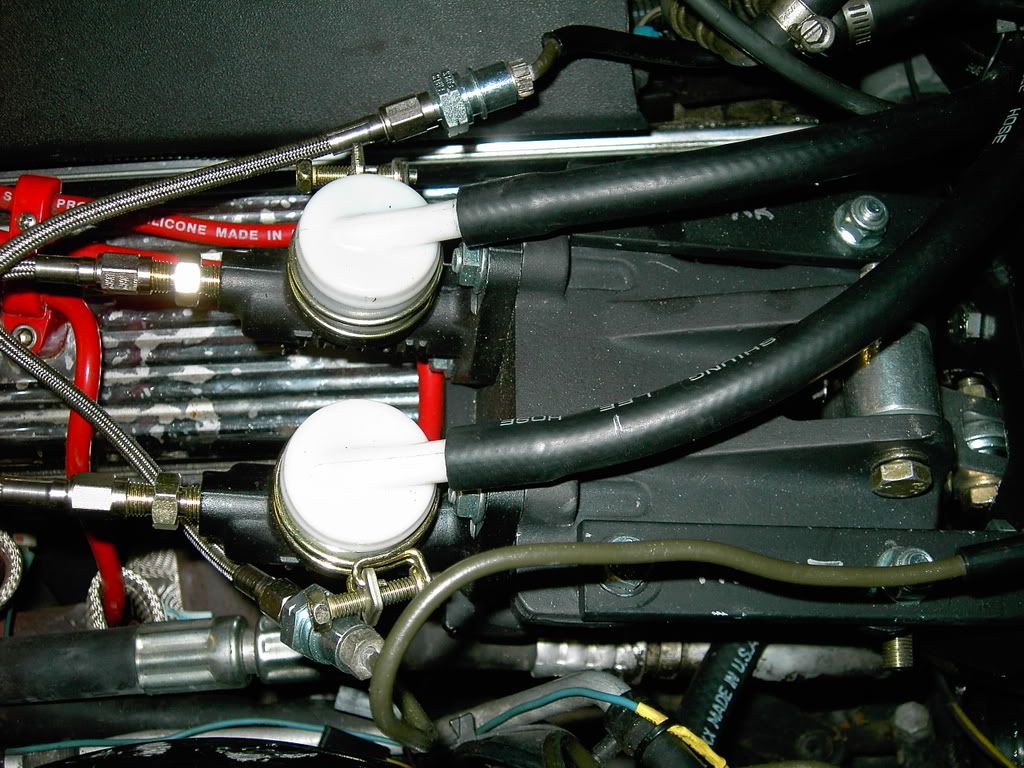

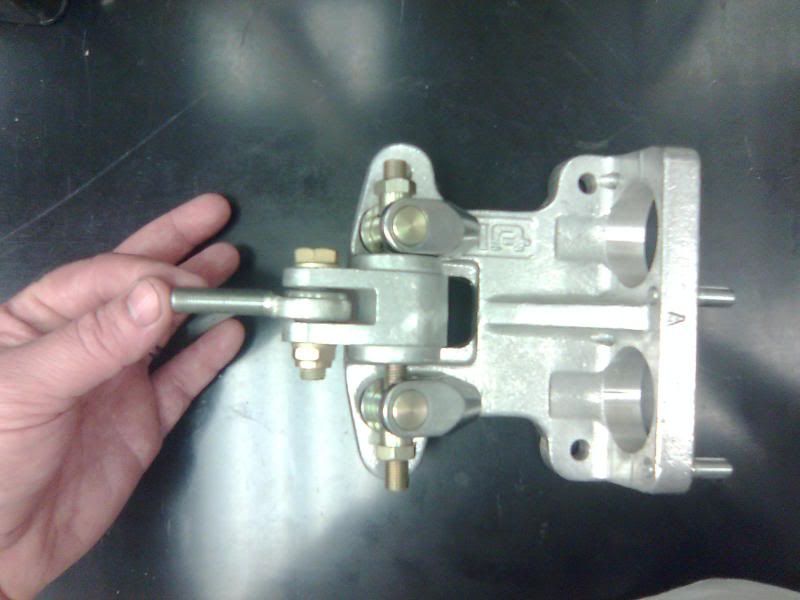

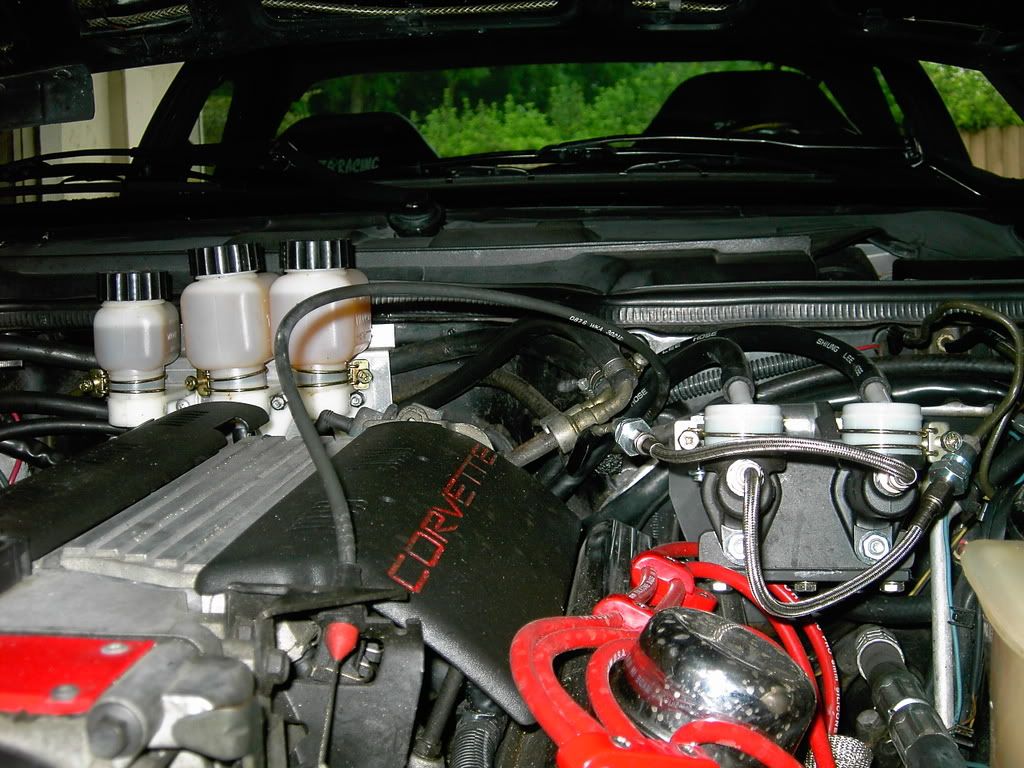

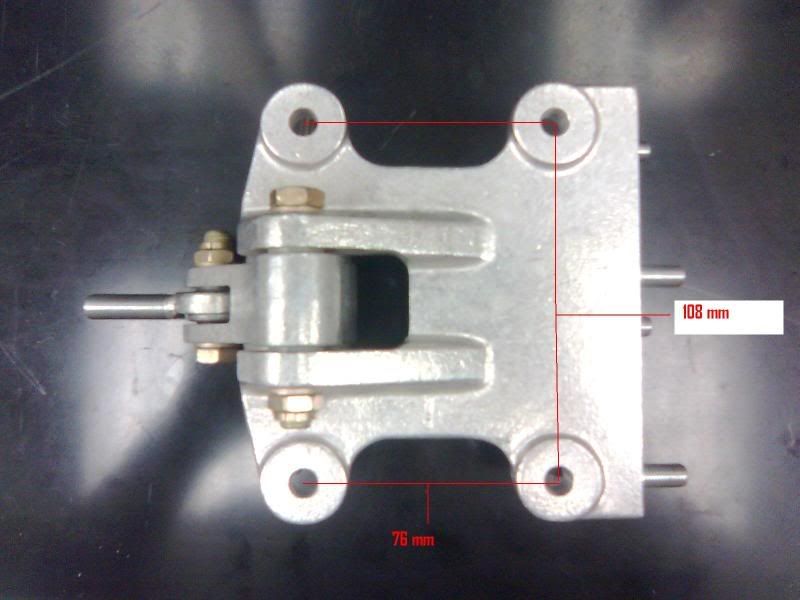

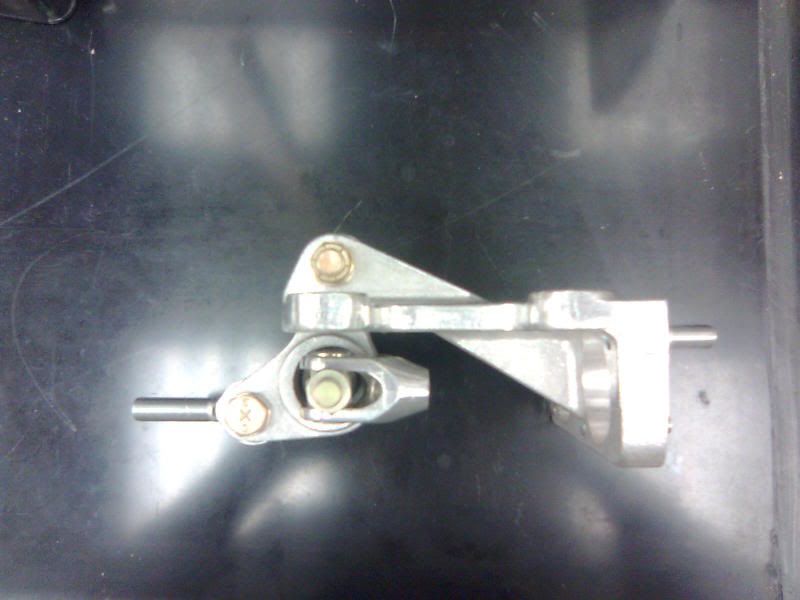

Here are the parts pics...
http://s270.photobucket.com/albums/jj118/nosubt2/parts/

gt1scca

Posts : 795
Join date : 2009-06-08
Age : 49
Location : Belton, SC

Back to top Go down

getting sideways

Post  xschop on Tue Jun 16, 2009 3:07 pm

Can the MC be mounted on it side for even more valve cover clearance.....
Me LIKEY!

PORH
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Re: Tilton Dual MC Setup

Post  gt1scca on Tue Jun 16, 2009 3:12 pm

xschop wrote:Can the MC be mounted on it side for even more valve cover clearance.....
Me LIKEY!
PORH

Dunno...we can find out though.


Last edited by gt1scca on Fri Aug 21, 2009 1:51 am; edited 1 time in total

gt1scca

Posts : 795
Join date : 2009-06-08
Age : 49
Location : Belton, SC

Back to top Go down

Chart

Post  xschop on Tue Jun 16, 2009 4:00 pm

I think V8carrera over on Gestapoville posted up the different MC bores from the various 944's
Anybody got that chart.
PORH
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton 72-650

Post  xschop on Sat Jun 20, 2009 10:40 am

I may have found a better set-up.....
Thinking I may flip it for even more valve cover clearance.....PORH
http://bicknellracingproducts.com/catalog/popup_image.php?pID=1087&osCsid=e4595f4ae8d3567f731808bda31a3b1d
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Re: Tilton Dual MC Setup

Post  gt1scca on Sat Jun 20, 2009 11:04 am


"The shiznit..." and $10 cheaper...Also, I'll copy the MC info over here...
The LS430 4 x 42mm pistons have slightly more (8sq. mm) than the 996 / GT3 (Big Reds). The GT3 master cylinder has a 25.4mm (1.0") front circuit bore. The GT3 rear piston surface area comes in at 116sq. mm, the SAME as the FRONT 944 Turbo (which may be moved to the rear).

NOW...the GT3 rear MC circuit uses a 25.4mm (1.0") bore, BUT the 944T front circuit is supplied by a meager .75" piston bore.

I would use a 1" bore MC for the front, and a .75" bore MC on the rear circuit.

Here's the chart...


Last edited by gt1scca on Tue Dec 22, 2009 8:20 pm; edited 1 time in total

gt1scca

Posts : 795
Join date : 2009-06-08
Age : 49
Location : Belton, SC

Back to top Go down

72-650

Post  xschop on Sat Jun 20, 2009 2:09 pm

Got it on it's way from Southwest Speed ($157)
I think the MC bolt spacing is universal for many brands of MC's
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

ls430 rears?

Post  xschop on Sun Jun 21, 2009 9:21 pm

WHY NOT?
Be major overkill.... but 1/3 the price of front Turbo's moved to the rear Evil or Very Mad
POPP Razz
and definitly PORH Razz Razz Razz
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Re: Tilton Dual MC Setup

Post  gt1scca on Sun Jun 21, 2009 9:38 pm

Got specs / piston sizes / rotors ? for the rear LS430? If so, we can size the rear master, stick a fork in this pig and call it a day...


Last edited by gt1scca on Fri Aug 21, 2009 1:51 am; edited 1 time in total

gt1scca

Posts : 795
Join date : 2009-06-08
Age : 49
Location : Belton, SC

Back to top Go down

Re: Tilton Dual MC Setup

Post  xschop on Mon Jun 22, 2009 3:58 am

I was actually thinking the same Front LS430 calipers on the rear of the 944.
But now that you mention it, I will look into the rear LS430 specs, They are Dual piston 2 x 42mm.......Do remember, they are half $ what the front LS430's were running.....

I wonder what rear rotor we would have to go with?
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Re: Tilton Dual MC Setup

Post  gt1scca on Mon Jun 22, 2009 5:03 am

Yea, NO. The front turbo brakes are trackable on a turbo car with some quality pads...they should be awesome on the rear. The Big Reds kits use them on the rear with nary a peep.

If you don't have a turbo car to begin with, disregard the above comments...BUT, the LS430 rears are freakin' monstaaazzz!

afro alien cyclops affraid very, very affraid

gt1scca

Posts : 795
Join date : 2009-06-08
Age : 49
Location : Belton, SC

Back to top Go down

Re: Tilton Dual MC Setup

Post  xschop on Mon Jun 22, 2009 5:10 am

Monstazz
Looks like the LS430 rear 2x42 calipers are about the same $ as the front 4x42mm calps!!!
if we stick the 4x42mm on the rear of the 944 NA, will the 87-up Turbo rear 300mm rotors fit the NA's. This info I don't know.....Holla Back Yo
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

The Schiznit

Post  xschop on Wed Jun 24, 2009 1:16 pm

Setting the pushrod directly in center while mounting Dual MC housing on it's side puts the master cylinders over almost an inch away from the valve cover.....


Bracket design to mount to firewall will be a joke....


And the smooth operator that makes the pushrod setup hassle-free (hopefully) is the Heim-joint connection on the 1:1 cam design with built-in balance bar (set in with pillow ball joint in center)....
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Yo yo Ma...

Post  gt1scca on Wed Jun 24, 2009 7:11 pm

xschop wrote:...if we stick the 4x42mm on the rear of the 944 NA, will the 87-up Turbo rear 300mm rotors fit the NA's. This info I don't know.....Holla Back Yo
Still investigating that one...BUT...the Boxster S should fit. Remember...the Turbo fronts will go to the...Oh hELL...I'll measure the thing.


Last edited by gt1scca on Fri Aug 21, 2009 1:52 am; edited 1 time in total

gt1scca

Posts : 795
Join date : 2009-06-08
Age : 49
Location : Belton, SC

Back to top Go down

rear rotor choice

Post  xschop on Wed Jun 24, 2009 8:52 pm

The 87-up Turbo rears are all 299mm wide and all 100mm offset according to Brembo.
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

1986 Turbo

Post  gt1scca on Wed Jun 24, 2009 10:55 pm

For the 1986 Turbo, 300mm X 74mm, front and rear.
The rears have an integral concentric ring with an outside dia. of 71.75mm...


Last edited by gt1scca on Fri Aug 21, 2009 1:52 am; edited 1 time in total

gt1scca

Posts : 795
Join date : 2009-06-08
Age : 49
Location : Belton, SC

Back to top Go down

MC sizing...

Post  gt1scca on Mon Jul 06, 2009 3:20 am

When sizing master cylinders for the Tilton dual MC setup, pedal ratio is a major part of the equation. I had thought the 944 stock ratio was 5:1...until I got the dims from an actual pedal.

Here's the results...



The stock MC pushrod location = 4.25:1 ratio.
The .75" higher modified location (used in the booster delete / single manual MC setup) = 6:1 ratio.

.

gt1scca

Posts : 795
Join date : 2009-06-08
Age : 49
Location : Belton, SC

Back to top Go down

Tilton Dual Housing for 944

Post  xschop on Fri Jul 24, 2009 12:09 pm

Got alot of R&D time in on this one. I will be machining these from T-6061 and then Tig welding to the 1/4" billet plates I traced from the cereal bowl.
The 5/16" diameter hole bolts directly to the driver's side bolt hole on the firewall. Depending on the Hooker 2312 headers Johnny Johnny modded up, the bolt hole can be drilled upwards if need with this design to allow for more clearance. The Heim joint on the Dual MC bracket allows for this without any pushrod binding....
POHB


avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Re: Tilton Dual MC Setup

Post  Tetzuoe on Mon Jul 27, 2009 1:46 pm

so this bracket will be welded to a plate that bolts to the fire wall, we just get the tilton bracket, master cylinders and remote reservoir stuff?
I take it there will be an alternate MC suggestion for those with 951 rear calipers Laughing
avatar
Tetzuoe

Posts : 178
Join date : 2009-06-12
Age : 34
Location : Falls Church, VA

Back to top Go down

skippy

Post  xschop on Mon Jul 27, 2009 1:58 pm

Damn Skippy
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Re: Tilton Dual MC Setup

Post  Tetzuoe on Mon Jul 27, 2009 2:01 pm

heh, if you feel crazy you can get a remote bias adjusting knob for...
180 BUCKS!!! affraid scratch

The game is afoot! time to sell off all my old junk!
avatar
Tetzuoe

Posts : 178
Join date : 2009-06-12
Age : 34
Location : Falls Church, VA

Back to top Go down

180 bones

Post  xschop on Mon Jul 27, 2009 3:43 pm

I have an economical solution....Get your ass out of the car, pop the hood and turn the knob supplied with the Tilton Bracket. With this design the knob is right there up top Cool lol!
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Re: Tilton Dual MC Setup

Post  Tetzuoe on Tue Jul 28, 2009 6:33 am

Laughing the markup is incredible, I wonder if they tack the word 'billet' on there if theyll raise the price for me. why would you need to adjust the bias from inside the car anyway?
avatar
Tetzuoe

Posts : 178
Join date : 2009-06-12
Age : 34
Location : Falls Church, VA

Back to top Go down

False advertising

Post  xschop on Tue Jul 28, 2009 7:21 am

Tilton couldn't mark their Dual MC housings "Billet" because they are made from cast aluminum. I made the firewall plates from 1/4" Billet t-6061 and will make the bracket holders from the same alloy to get the correct welding properties and strength from an all 1/4" design. Will save a few pounds compared to steel material.
avatar
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Re: Tilton Dual MC Setup

Post  Tetzuoe on Tue Jul 28, 2009 8:47 am

oh, I was talking about the remote adjuster =P
any thoughts on sealing the hole around the push rod, lots of funky gasses in that area of the engine bay... how is this normally done without the brake booster?
avatar
Tetzuoe

Posts : 178
Join date : 2009-06-12
Age : 34
Location : Falls Church, VA

Back to top Go down

Re: Tilton Dual MC Setup
