LS430 Big Brake Swap Empty LS430 Big Brake Swap

Post  xschop Tue Jun 09, 2009 9:01 am

First off, I don't own a patent and could care less if you made 100 sets. I'm not a big company that pretends I have a patent and kicks you off a public forum because I actually have no legal recourse.
I came up with the Lexus Caliper idea so I didn't have to spend 1200 hard earned dollars to line the Pockets of some snooty bastard behind a keyboeard.....I am designing more things for the 944 V8 swap and will only post details on this forum from now on.
That being said, anything I design and offer for sale, I will first post diagrams for anyone that wants to do it himself or herself for that matter. The 86 turbo is the unknown and it is being worked on.....POPP

For Early cars you have to machine your hubs like this

LS430 Big Brake Swap 944EarlyHubBoxsterSRotorMod

For late cars you need billet centering rings like these

LS430 Big Brake Swap Late944BoxsterSRotorHubAdapterRings

And Adapter brackets have to be precision machined accordingly
LS430 Big Brake Swap 944-BoxsterSrotorAdapter
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  Johnny Johnny Tue Jun 09, 2009 9:08 am

Glad to see you back! This has all been such BS. Thought I'd supplement the above diagrams with RL pics of the setup.

Hub that has been machined:
LS430 Big Brake Swap P4030711

Lip inside R1 Boxster S rotors:
LS430 Big Brake Swap P4030713

Rotor mounted to hub:
LS430 Big Brake Swap P4030714


Last edited by Johnny Johnny on Tue Jun 09, 2009 9:40 am; edited 1 time in total

Johnny Johnny

Posts : 164
Join date : 2009-06-09
Age : 53
Location : Oakville, Ontario Canada

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  Dawgz83948 Tue Jun 09, 2009 9:20 am

Thanks... You RULE!!!!!!! I hope Doug got a lot of money for the other forum, because who ever bought rights to it now owns a GHOST TOWN.....
Dawgz83948
Dawgz83948

Posts : 603
Join date : 2009-06-08
Location : Ca.

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  msmoorenburg Tue Jun 09, 2009 9:25 am

here is a quick brake down on what you will need (please correct if i'm wrong)

1. Boxster S rotors 00-04
2. Lexus LS430 Brake Calipers 00-04

4 ea. 4" length 9/16 - 18 (TPI) bolts
4 ea. 9/16 flat washers
4 ea. 9/16 lock washers
4 ea. M12 x 1.5 x 45mm length bolts


Last edited by msmoorenburg on Tue Jun 09, 2009 9:34 am; edited 1 time in total
msmoorenburg
msmoorenburg

Posts : 75
Join date : 2009-06-09
Age : 45
Location : Conroe Tx

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  xschop Tue Jun 09, 2009 9:32 am

"""""LS-430""""" front 4-pot radial mounted type with the dowel pin extensions. These are better designed than Brembo's calps
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  coctostan Tue Jun 09, 2009 7:17 pm

What are the specs on the LS430 calipers? What piston size? How does it compare to 951 fronts?

What are the dimensions of the Boxster S rotors?

I'm trying to get an idea for how much improvement these calipers and rotors would provide.

coctostan

Posts : 25
Join date : 2009-06-09

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  xschop Tue Jun 09, 2009 7:35 pm

318mm Boxster S rotors
I will have to mic the piston...IIRC 4 x 42mm pistons
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  coctostan Tue Jun 09, 2009 8:43 pm

Do you know the thickness of the rotors?

coctostan

Posts : 25
Join date : 2009-06-09

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  Johnny Johnny Tue Jun 09, 2009 9:07 pm

Rotors are 28mm wide.

Johnny Johnny

Posts : 164
Join date : 2009-06-09
Age : 53
Location : Oakville, Ontario Canada

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  coctostan Tue Jun 09, 2009 9:33 pm

According to my rough calculations, this caliper and rotor should have excellent balance with the 86 stock MC and the 18/5 prop valve. Do you guys know the width of the rotor's braking surface, the annulus width? I just guessed on that for my calcs.

I apologize if you guys had already done this math, but I couldn't find it anywhere.

Do you guys know if these calipers have stainless pistons? Are they a monobloc design? Has anyone purchased the remanufactured calipers that sell for around $85 each?

coctostan

Posts : 25
Join date : 2009-06-09

Back to top Go down

LS430 Big Brake Swap Empty LS430 caliper specs

Post  xschop Thu Jun 11, 2009 9:41 am

They are 4 x 42mm piston MONOBLOC ALLOY. That is why I chose them, they are an excellent match for the 944 Master Cylinders. I will be doing hydroboost or possibly a dual manual like 948 member did on the Gestapo board.
There are other calipers that are as nice (like Toyota Supra 4 pots). But of course you will pay nicely even if you can find them. I have the refurbed ones at 140/pr and I have rebuilt calipers before and these are new. The pistons are even new,so it's hard to tell if they are stainless. I haven't stuck a magnet to them, but higher strength stainless is usually magnetized because of the higher Fe % for strength/durability.
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  tooms351 Thu Jun 11, 2009 6:17 pm

Hi, I was wondering if this swap will fit inside early offset, 15 fuchs? BTW nice to see everyone jumping over tongue
tooms351
tooms351

Posts : 50
Join date : 2009-06-11
Location : st petersburg fl

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  Johnny Johnny Thu Jun 11, 2009 7:03 pm

Not likely, they are BIG - booyah!

(BTW - this is in comparison to the bigger 951 rear calipers, which I don't believe fit under early offset 15" Fuchs).

LS430 Big Brake Swap Calipe10

Johnny Johnny

Posts : 164
Join date : 2009-06-09
Age : 53
Location : Oakville, Ontario Canada

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  msmoorenburg Thu Jun 11, 2009 7:22 pm

I'm gonna say no see pics below

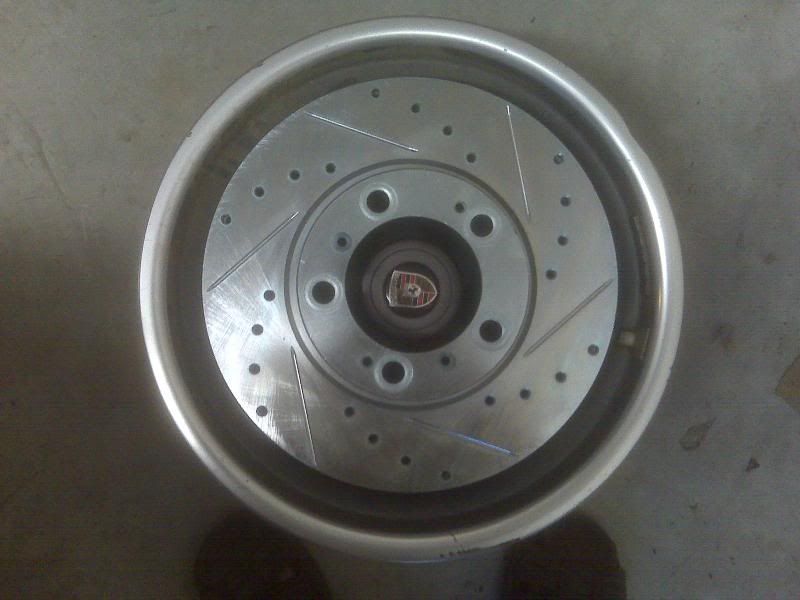

rotor sitting on the face of a early 15x7 Fuch
LS430 Big Brake Swap IMG00128

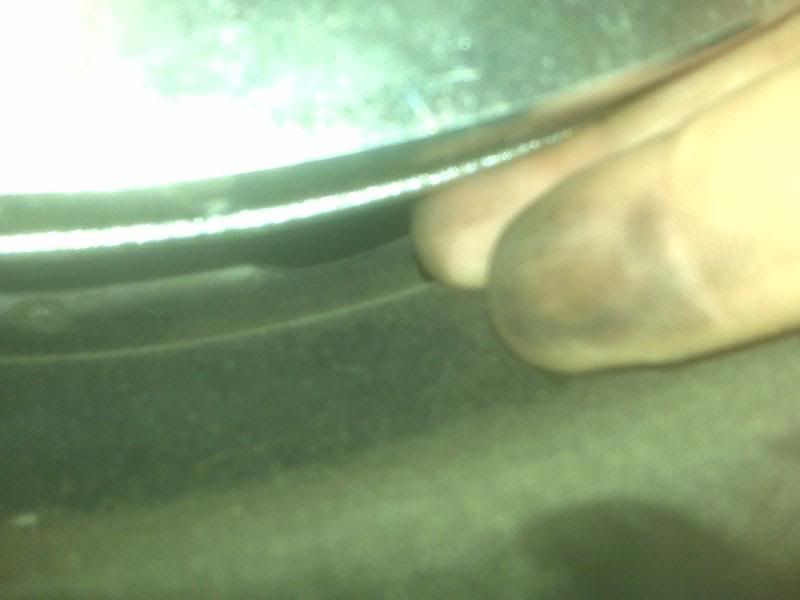

and here is the space you have left without the caliper
LS430 Big Brake Swap IMG00130
msmoorenburg
msmoorenburg

Posts : 75
Join date : 2009-06-09
Age : 45
Location : Conroe Tx

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  coctostan Thu Jun 11, 2009 8:00 pm

Johnny, could you get me a width comparison of the 951 caliper vs the Lexus Caliper. By width I mean from the "Porsche" text to the opposite side of the caliper. I'm curious if there will be clearance issues with wheel spokes.

coctostan

Posts : 25
Join date : 2009-06-09

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  Johnny Johnny Thu Jun 11, 2009 8:20 pm

154mm for the rear 951 calipers, 162mm for the Lexus.

Johnny Johnny

Posts : 164
Join date : 2009-06-09
Age : 53
Location : Oakville, Ontario Canada

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  tooms351 Thu Jun 11, 2009 8:52 pm

Thanks Johnny and Msmoorenberg, I do have 17" italian knockoffs ( very heavy ) for the street, but still run 15" fuchs for track days Sad
tooms351
tooms351

Posts : 50
Join date : 2009-06-11
Location : st petersburg fl

Back to top Go down

LS430 Big Brake Swap Empty More dims for wheel clearance questions

Post  xschop Thu Jun 11, 2009 9:48 pm

The 55mm dim on the lexus calps is the dim that I wanted to know on the Big Reds but never got a reply to.

LS430 Big Brake Swap LS430CalpDimensions

LS430 Big Brake Swap LS430CalpDimensions2
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  coctostan Fri Jun 12, 2009 6:56 am

Thanks for those dims. I have to say those Lexus calipers are stout. I guess stopping a massive luxury car is no easy task.

coctostan

Posts : 25
Join date : 2009-06-09

Back to top Go down

LS430 Big Brake Swap Empty 86 Turbo about to be cracked

Post  xschop Mon Jun 15, 2009 8:09 pm

Anybody have an 86 Turbo hub and Rotor to measure the dimensions. IT's the ODDBALL
Basically need to know the rotor dimensions to verify if all that is needed is to drill the bracket mount bolt spreadwidth to 94mm
What I,m concerned with is the rotor heighth being the same as the Early NA rotor height (NOT Width).
Hard to tell from the pics but what is critical is the dimension in yellow being same as the 83-85.5 NA......
Any input ???? .....PORH
LS430 Big Brake Swap 944hub3-1

LS430 Big Brake Swap BoxsterSrotorswap
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  Tetzuoe Sun Jun 21, 2009 9:57 pm

oh im using 87 rotors which are the same as the 86 I THINK
still got my images? or did that thread get nuked (PORH)? I can try to find my photos and post them up here, everything mounted perfectly!
Tetzuoe
Tetzuoe

Posts : 178
Join date : 2009-06-12
Age : 40
Location : Falls Church, VA

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  xschop Mon Jun 22, 2009 3:51 am

"""""""""or did that thread get nuked (PORH)?""""""""
Yeah, They think I stole their Lexus Caliper on Boxster Rotor Idea and infringed on their Adapter Bracket design by posting for all the world to see!!! lol!
PORH
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

LS430 Big Brake Swap Empty Re: LS430 Big Brake Swap

Post  Tetzuoe Mon Jun 22, 2009 7:59 am

LS430 Big Brake Swap Facepalm

Ill dig up my photos when I can find my camera cable.
Tetzuoe
Tetzuoe

Posts : 178
Join date : 2009-06-12
Age : 40
Location : Falls Church, VA

Back to top Go down

LS430 Big Brake Swap Empty Carbotech makes pads for the LS430 calipers

Post  coctostan Tue Jun 23, 2009 3:42 pm

I checked a few manufacturers and Carbotech is the only one I could find that offers both street and track pads. You can get any of their compounds in this pad size.

coctostan

Posts : 25
Join date : 2009-06-09

Back to top Go down

LS430 Big Brake Swap Empty Track pads

Post  xschop Tue Jun 23, 2009 7:00 pm

SCHWEEEEET. I am gonna see what it takes to drop the LS430's on the rear as well.....can't beat the price. I looked at a brand new set of Brembo 4-pots for a Mustang and they don't have anything on the Lexus calps....
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down
