Page 3 of 8 Previous  1, 2, 3, 4, 5, 6, 7, 8  Next

Go down

Tilton Dual MC Setup - Page 3 Empty Firewall Cracking

Post  968gene Fri Oct 16, 2009 6:47 am

Firewall cracking is a known 924-944-968 issue. You may want to think about this while you have the firewall stripped.
968gene
968gene

Posts : 259
Join date : 2009-07-02

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  Dawgz83948 Fri Oct 16, 2009 9:23 am

968gene wrote:Firewall cracking is a known 924-944-968 issue. You may want to think about this while you have the firewall stripped.
Yup had to weld 1/16" plate steel over my firewall where the clutch/master went in. I did my Hulk impression and tore the clutch master out of the firewall while driving it one day.
Dawgz83948
Dawgz83948

Posts : 603
Join date : 2009-06-08
Location : Ca.

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  xschop Fri Oct 16, 2009 9:54 am

""""Yup had to weld 1/16" plate steel over my firewall where the clutch/master went in. I did my Hulk impression and tore the clutch master out of the firewall while driving it one day""""

Did you simply stick on the stock MC with a custom pushrod?
I would think going to dual MC's would alleviate the stress. I am using 1/4" thick wall plate with 1.5" washers on the back side.
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  Dawgz83948 Fri Oct 16, 2009 10:37 am

xschop wrote:""""Yup had to weld 1/16" plate steel over my firewall where the clutch/master went in. I did my Hulk impression and tore the clutch master out of the firewall while driving it one day""""

Did you simply stick on the stock MC with a custom pushrod?
I would think going to dual MC's would alleviate the stress. I am using 1/4" thick wall plate with 1.5" washers on the back side.

It wasn't the brake side that tore, although I did beef that up also, the clutch master is what went through. I have power brakes so I don't believe I have as much stress as a manual setup (dual or not).
Dawgz83948
Dawgz83948

Posts : 603
Join date : 2009-06-08
Location : Ca.

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  xschop Fri Oct 16, 2009 11:17 am

I don't foresee any problem. The far driver's side bolt may take more pressure than the opposite side bolt by default, but the thickness of the plate distributes the forces to all 3 bolts almost equally.

Do you have pics of what you did?
Shortly, I will be making the custom plates and pushrods for the stock MC to bolt to the Cereal bowl also.
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  948 Fri Oct 16, 2009 11:40 am

Very nice....
948
948
Moderator
Moderator

Posts : 573
Join date : 2009-06-09
Age : 108
Location : East PA

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  Porch Fri Oct 16, 2009 2:09 pm

That's quite a setup, very nice!
Porch
Porch

Posts : 851
Join date : 2009-09-02
Age : 42

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Friggin ay

Post  xschop Mon Nov 02, 2009 11:28 am

6 hours dismantling, drilling the clevis relocation 1" higher and then doing some drawings for the best set-up on the push rod conversion piece needed.
I don't EVER want to tear out that brake pedal and try reinstalling that friggin' return spring again. What a PITA.
O.K., gripe dept. closed....
There are a few different ways of doing the pushrod, but whichever way you want to do it, I had mic'd out that the Tilton 72-650 heim center to 944 pedal pushrod clevis center should be exactly 125mm from each other for the Tilton assembly to be in relaxed position and clear the firewall. Also my Wilwood MC pushrods had to be trimmed down 1/2" to attach properly in their relaxed positions.

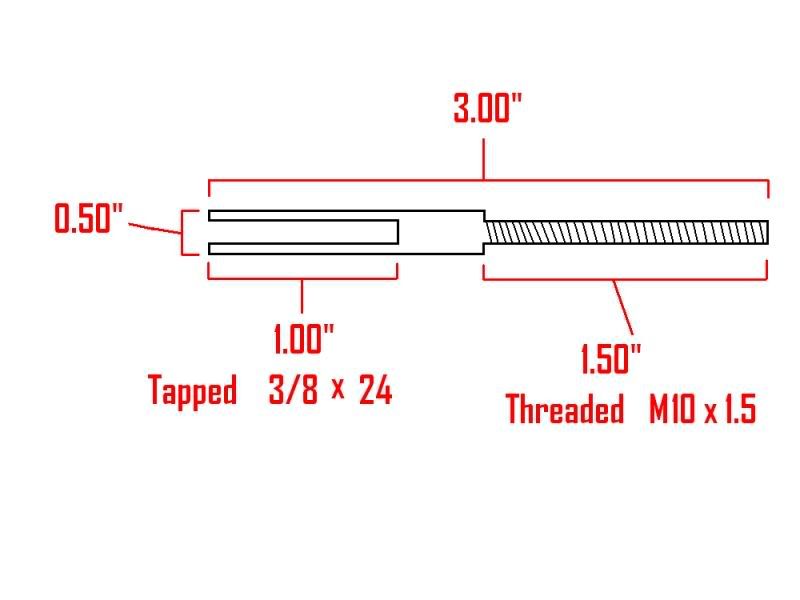

Heres what the pushrod should look like for the easiest swap. Keep in mind that for optimum adjustment the Tilton 3/8 x 24 Male Heim that comes with the Dual MC Housing assembly should have it's centerbore (+ or -) 1/8" from the firewall sheet metal......

This will put you right on the money with some forward and aft adjustment. Which got me thinking since these cars are all "hand made"...How far off if any, are the brake mounting bracket points from car to car....
Tilton Dual MC Setup - Page 3 Dualmcpushrod
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  xschop Mon Nov 02, 2009 9:21 pm

dumb question.....3 lines from the stock MC....where they all go? looks like 2 cam off the fat side of the original mc housing and 1 from the skinnier mc bore....
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  944-LT1 Tue Nov 03, 2009 7:30 pm

2 for each front and 1 for both rears
944-LT1
944-LT1
Moderator
Moderator

Posts : 1265
Join date : 2009-06-09
Age : 102
Location : NOTRE DAME

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty For those of us running stock turbo brakes.

Post  Arthropraxis Thu Nov 05, 2009 10:29 am

I emailed Tilton and they suggested a front MC of 5/8" and rear 13/16" for a 1987 944 turbo setup.
Arthropraxis
Arthropraxis

Posts : 1103
Join date : 2009-09-02

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  xschop Thu Nov 05, 2009 11:04 am

originally I was told 5/8" front for the 4x42 lexus calps and 1" for the lexus 4x42 calps in the rear. Now I have been told to put 7/10" on the same front lexus 4x42 calps and 1" rear for the RX7 3x36mm calps....
"to keep it balanced".....

Also as per experience. Tilton does not supply the nuts that bolt the Ind. cylinders to the 72-650 housing. I measured them to be 3/8 x 24 and you will need 4 of them with lockwashers....FYI

LT1 said....... "2 for each front and 1 for both rears"

Let me get this straight.... So the long tube coming out of the top firewall closest to fender is the one for the rear brakes and the other 2 are for left and right front caliper feeds and they need to be tied together?
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  944-LT1 Thu Nov 05, 2009 1:34 pm

Tilton Dual MC Setup - Page 3 944_br14

The rear line and front right lines are both routed from the master together through the firewall, in between the heater housing and firewall to the right side of the car, through the firewall again, into the front right wheel-well where the front right line connects to the front right brake hose while the rear line goes under the car and back to the rear to a distribution block.
944-LT1
944-LT1
Moderator
Moderator

Posts : 1265
Join date : 2009-06-09
Age : 102
Location : NOTRE DAME

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty 10-4

Post  xschop Thu Nov 05, 2009 3:26 pm

Im clear for take off. What is the size of the 944 hard line fittings? And how are people tieing the 2 front together?
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  Porch Thu Nov 05, 2009 4:21 pm

I didn't use the dual m/c obviously, but Autozone or any auto parts store sells brass T's. Just used one of those...
Porch
Porch

Posts : 851
Join date : 2009-09-02
Age : 42

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  Dawgz83948 Thu Nov 05, 2009 4:21 pm

xschop wrote:Im clear for take off. What is the size of the 944 hard line fittings? And how are people tieing the 2 front together?

Ohh Ohh, I bought a T from a 80's BMW 5 series out of pick-n-pull.
Dawgz83948
Dawgz83948

Posts : 603
Join date : 2009-06-08
Location : Ca.

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Complete Bolt-On is finalized

Post  xschop Fri Nov 06, 2009 6:38 pm

Final billet housing and firewall plate pre-heated then Tig-welded with 1/2" welds because of the thick billet used. I made the pushrods out of 4130 steel. Everything bolts right up and will take a ton of force...Literally...
I only have 1 set unaccounted for and will only make these in runs of 3 or more...

Tilton Dual MC Setup - Page 3 DUALMCandPUSHROD


Last edited by xschop on Fri Oct 15, 2010 4:07 pm; edited 1 time in total
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  gt1scca Fri Nov 06, 2009 6:47 pm

I'll take one...PM?

gt1scca

Posts : 795
Join date : 2009-06-08
Age : 55
Location : Belton, SC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  xschop Fri Nov 06, 2009 7:58 pm

PM sent. How's that custom harness coming along. Won't be long, I'm almost there. Gotta figure some Brackets for the RX7 calps tomorrow.
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  modenas Fri Nov 06, 2009 8:02 pm

that bad ass, how my control arms, and brake adpter coming along?
modenas
modenas

Posts : 285
Join date : 2009-06-08
Age : 35
Location : lubbock tx

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty arms

Post  xschop Fri Nov 06, 2009 8:10 pm

As soon as the Polyurethane bushings show up I will assemble your set. What color is your car again, you want them in Krylon Blue LOL...... I like the Krylon Yellow, cheap bling-bling and looks good with black and billet.
I ordered the plate for the simple MC pushrod conversion kit. I need to get a heads-up on that now that you remind me....
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Got my mount in today

Post  Arthropraxis Thu Nov 12, 2009 5:39 pm

It is a very nice piece of work. The welds are perfect like a roll of nickles. It seems like I saw it somewhere but now I can't find it, what hardware should I use to mount it to the firewall?
Arthropraxis
Arthropraxis

Posts : 1103
Join date : 2009-09-02

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty 3 bolts

Post  xschop Thu Nov 12, 2009 7:37 pm

2 bolts........5/16" x 1" long
1 bolt.........5/16" x 1.5" long Goes thru thickest part of plate and housing.
and washers behind firewall is a must, might as well throw on 3 lockwashers up front.
Don't forget the stock pedal clevis to Tilton Heim centers should be 125mm C2C. It is easiest to install the pushrod setup on the Tilton hosing, then go under the floorboard and run your clevis pin through after you have drilled your pedal upwards 1 to 1.1". I had to trim the Willwood MC pushrods down exactly .5" and everything bolted up like it came from the factory. Maybe Tilton MC' Pushrods are shorter, I'm not sure, just make sure the individual MC's are setting flat on the 72-650 housing and their respective pushrods are in their relaxed position....

For everyone asking, I am building more of these this week and will have them ready by the end of next week after my trusted welder does his magic....Please respond to http://www.944v8s.com/Products.html
I do not expect to have more than a 2-week lead time on anything offered on the new site....Xschop
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty Re: Tilton Dual MC Setup

Post  xschop Fri Nov 13, 2009 10:05 am

If you previously had the stock 944 MC on the cereal bowl and you have already fatigued your firewall sheetmetal....here's an idea for you. Later I will modify this setup to adapt to the WILWOOD 260-7563 MANUAL MASTER CYLINDER CONVERSION PLATE & PUSHROD.....http://www.944v8s.com/Products.html

As for now, I think it would be overkill for the Tilton Dual MC Setup, but here's a look at what I will make...

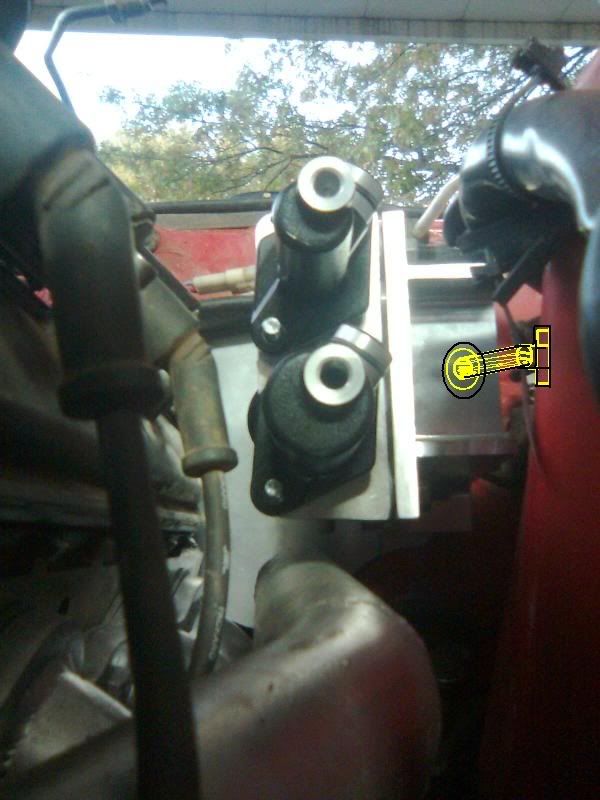

Double adjustable heim joints with tension preload. This will fix any firewall flex problems....

Tilton Dual MC Setup - Page 3 Firewalflexfix
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down

Tilton Dual MC Setup - Page 3 Empty top view

Post  xschop Fri Nov 13, 2009 10:19 am

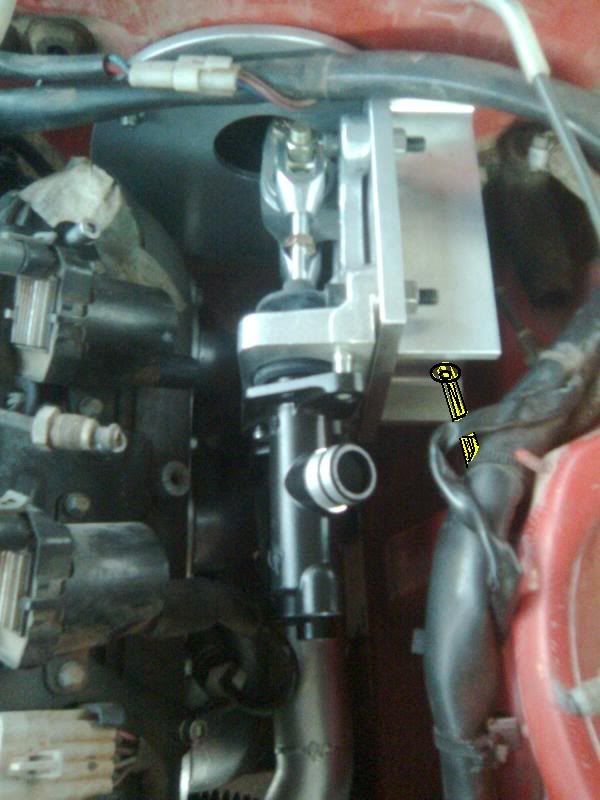

Should only be a 3 to 4 inch rod and heims with a bracket...weld or bolt on....
Tilton Dual MC Setup - Page 3 Firewallflexfix2
xschop
xschop

Posts : 2711
Join date : 2009-06-09
Location : OKC

Back to top Go down
