944 ls1 brake booster?

+9
Techno Duck
the951racer
Porschedoc
Arthropraxis
xschop
Rich L.
docwyte
87-944S
tkrame944
13 posters

Page 2 of 3 Previous  1, 2, 3  Next

Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Wed Aug 22, 2012 2:53 pm

that mustang booster is looking better and better, it could be years before someone near me parts out the right car with the booster. that realy would be the best way to go then you get all the lines and little bs that jsut makes for a pain in the ass when you dont have them. lots of parts like that anticipate you reuseing stuff

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Wed Aug 22, 2012 3:23 pm

well as soon as i speek of course i find a car which may just have the stuff. i found a 1984 bmw 740i my rockauto part search said that it is a hydroboost, it is the booster with offset into the fire wall also, i dont know how big of a deal that is but i think it sould work.

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  87-944S Wed Aug 22, 2012 3:57 pm

That should not be an issue, that will fit under the cereal bowl if you are using that for your mount, and if you are using Rob's, it should and barely penetrate the firewall, if at all. Rob's got a nice setup he designed.
87-944S
87-944S

Posts : 744
Join date : 2009-06-10
Location : Maryland

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Wed Aug 22, 2012 5:11 pm

i was thinking i would just drill some holes in my fire wall and mount it more or less like stock. if that works. but i would like to see Robs, where can i see one?

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  87-944S Wed Aug 22, 2012 6:25 pm

87-944S
87-944S

Posts : 744
Join date : 2009-06-10
Location : Maryland

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Sat Aug 25, 2012 6:19 pm

He does have a nice set up thats defiantly something I will try to do.

Thanks for the help

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  Porschedoc Mon Aug 27, 2012 8:41 am

Curious why no one has used the chevy hydraboost and keep everything gm?

Porschedoc

Posts : 56
Join date : 2010-12-15
Location : Olathe, KS

http://www.rennsportkc.com

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Mon Aug 27, 2012 5:25 pm

i just got the whole bmw set up for $100 Very Happy

i have a 99 sierra with hydroboost and it is shapped just terribly for this set up. it is also pretty big. i would imagine thats why it isnt used.

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  87-944S Mon Aug 27, 2012 5:33 pm

Great score on the BMW system! I just painted my modified cereal bowl will post pics once I can touch it. I recommend you replace the "bomb" and seals in the booster. I'll dig up links on how to do the seals and a good source for them if you are interested.
87-944S
87-944S

Posts : 744
Join date : 2009-06-10
Location : Maryland

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Booster Mount

Post  87-944S Sat Sep 08, 2012 9:36 pm

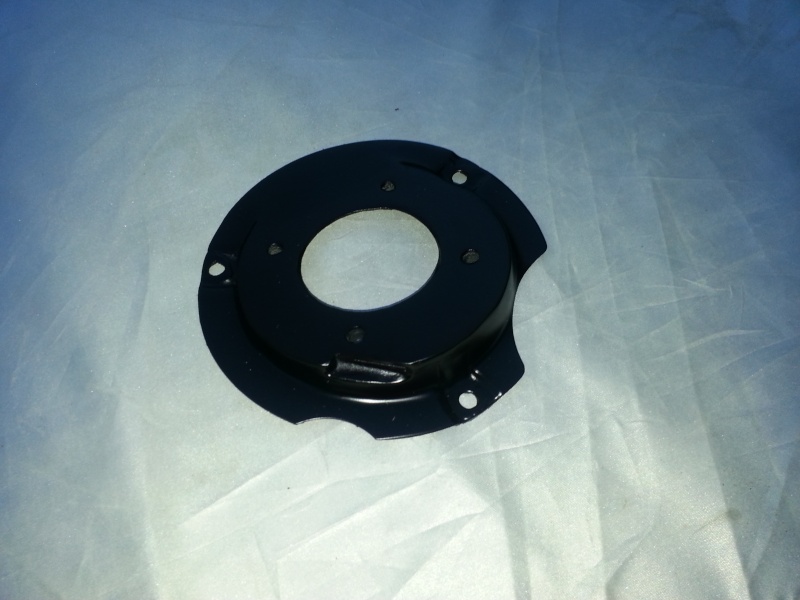

Here's what I did to ,ake a mount for the H31 booster.

944 ls1 brake booster? - Page 2 Hydrob10

I cut a plate out of steel to fit the cut down cereal bowl. The resulting angle is 12 degrees. This clears the engine and my truck coils, with the booster centered like the stock vacuum servo. I welded nuts on the back side of the plate for booster mounting bolts. The relief cut is a just in case the engine rocks a bit. Very Happy

More pics to come as I finish this last major mechanical item on my conversion.
87-944S
87-944S

Posts : 744
Join date : 2009-06-10
Location : Maryland

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  the951racer Sun Sep 09, 2012 3:11 pm

Learn something else for this swap every single day. Very Happy I assume this is easier to install and setup prior to getting the motor in...... Question

the951racer

Posts : 135
Join date : 2012-01-11
Age : 40
Location : Madison, MS

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  87-944S Sun Sep 09, 2012 4:33 pm

I don't think it matters too much, since I opted to remove the studs and install nutcerts in the firewall. Everything installs just fine with the LS in there, although removing the valve cover makes it a little bit easier.
87-944S
87-944S

Posts : 744
Join date : 2009-06-10
Location : Maryland

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Wed Sep 19, 2012 11:00 pm

Sorry im getting around so late to this (school) but i just got done mounting up my bmw system to my car and the way i did it was i took an aluminum plate and cut it in sort of a kite shape to have a corner at each of the firewall holes and space for the 4 booster holes, then i drilled a hole for the booster where it would clear the engine. To bolt the booster to the plate i threded the 4 holes to hold it down and cut the bolts flush so my system is flush to the firewall. To mount my pedal all i did was throw my porsche fork on the bmw and drilled a hole in the pedal arm. Everything fits and works great for what i can tell so far, i will try to post pictures soon.

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  87-944S Thu Oct 04, 2012 3:56 pm

I'd like to see pics! Instead of mounting it flush, I used the 12 degree angle for two reasons, to follow the sweep of the brake pedal, and so my reservoir sits level. I have never seen a BMW booster installed in person, but assume there is an angle since all the BMW reservoirs I saw for these H31 units are angled like the Porsche unit. I used a Porsche reservoir since I had a new one laying around.
87-944S
87-944S

Posts : 744
Join date : 2009-06-10
Location : Maryland

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Thu Oct 04, 2012 5:37 pm

944 ls1 brake booster? - Page 2 Img_5011

944 ls1 brake booster? - Page 2 Img_5012

944 ls1 brake booster? - Page 2 Img_5013

i think it will work in this configuation but any feedback will be highly apreciated. i basicly just made it off of what i though would be nice.

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Thu Oct 04, 2012 5:40 pm

the master cylinder i am using is my stock porsche one, it bolts right on like it was meant to.

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  87-944S Mon Oct 08, 2012 5:57 pm

Very nice work, looks like it belongs there! I just mentioned the 12 degree angle as it was discussed here that some people experienced premature M/C wear without it. I have no experience with this setup yet, and whether the 12 degrees is needed for the H31 booster. Your setup could easily be modded to accommodate the angle if required. Keep the pics coming and let us know how it works out for you.
87-944S
87-944S

Posts : 744
Join date : 2009-06-10
Location : Maryland

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Mon Oct 08, 2012 6:53 pm

Thanks! im satisfied with it. and Well someone has to try something new i am hoping to see if it all works for real in maybe a month. Im dieing to drive her but time is scarce these days. My undertakeing right now is bending all my own dual exhaust without a bender.[b]

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  the951racer Tue Oct 16, 2012 12:50 pm

So what are the years available for the BMW brake booster that will work on our swap? Is 95-01 too new?

the951racer

Posts : 135
Join date : 2012-01-11
Age : 40
Location : Madison, MS

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  Techno Duck Tue Oct 16, 2012 3:21 pm

Did a little reading about this system last week, seems everyone is using the 'H31' system which came on the E32 BMW's, basically the 7-series from '88-94. I think the same hydraulic booster was also used on the E23,E24 and E28. But i cant say if the other parts are the same such as the regulator.

This is a a nice write up on the system;

http://bmwe32.masscom.net/maxf_website/booster.htm

These links are helpful also;

http://twrite.org/shogunnew/systems/brakes.html

http://www.bimmernut.com/forum/7-series-bmw/34419-interesting-article-abs-hydro-h31.html

I am still trying to decide between the BMW and Ford hydroboost, though i did just buy a Tilton bias valve for the Ford setup so i guess you know what i am leaning towards.


Last edited by Techno Duck on Tue Oct 16, 2012 3:29 pm; edited 1 time in total

Techno Duck

Posts : 447
Join date : 2010-12-01
Location : San Diego, CA

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  tkrame944 Tue Oct 16, 2012 3:27 pm

I personally am using a booster from a 1982 BMW 740i the only difference I am aware of with this vintage as compared to the 88-94 model is that it is resesed into the fire wall a few inches. No real difference in mounting or function.

tkrame944

Posts : 101
Join date : 2012-05-29
Age : 29

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  the951racer Sat Oct 27, 2012 5:54 am

Awesome guys thanks for the replies. I'll be looking into that read duck. Just was wondering about clearance issues in the different years and such.

the951racer

Posts : 135
Join date : 2012-01-11
Age : 40
Location : Madison, MS

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  the951racer Sat Oct 27, 2012 5:58 am

What about this one??


http://www.ebay.com/itm/BMW-BRAKE-BOOSTER-MASTER-525-535-E34-735-E32-GIRLING-/310384065843?pt=Motors_Car_Truck_Parts_Accessories&hash=item484454fd33&vxp=mtr

the951racer

Posts : 135
Join date : 2012-01-11
Age : 40
Location : Madison, MS

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  87-944S Sun Oct 28, 2012 3:24 pm

It appears that would be a Girling vacuum booster, the hydroboost is made by ATE. Look for boosters from 86-88 735 series.
87-944S
87-944S

Posts : 744
Join date : 2009-06-10
Location : Maryland

Back to top Go down

944 ls1 brake booster? - Page 2 Empty Re: 944 ls1 brake booster?

Post  the951racer Tue Nov 13, 2012 9:21 am

Will do. Thanks

the951racer

Posts : 135
Join date : 2012-01-11
Age : 40
Location : Madison, MS

Back to top Go down
