Jaguar front calipers

Go down

Jaguar front calipers Empty Jaguar front calipers

Post  storch Sun Nov 28, 2010 7:21 am

I've read that some have used the xj6/12 calipers with success. Seen them priced remanufacutured and loaded with pads for about $65.00 each

Just wondering if they fit under the 15" phone dials.

Thanks
Storch
86 944na (soon to be reborn)
storch
storch

Posts : 15
Join date : 2010-11-23
Age : 56
Location : Durham

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  v8carreragts Sun Nov 28, 2010 5:47 pm

You mean these? I think I got these from a 77 or78 XJ6.
Jaguar front calipers Jagcaliper.th

I haven't tried to fit them under ant 15's but they fit under my 16" Fuchs. They may fit under 15's. I have a set of 15 x 6 Fuchs I could try but I probably won't be able to check until next weekend.
v8carreragts
v8carreragts

Posts : 330
Join date : 2009-06-08
Age : 64
Location : Tucson, AZ

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  Porch Sun Nov 28, 2010 6:52 pm

Don't mind the questions, but are those iron or aluminum? Piston size? Pad availability?
Porch
Porch

Posts : 851
Join date : 2009-09-02
Age : 39

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  v8carreragts Sun Nov 28, 2010 7:07 pm

They are iron and the piston size is 44mm (4 pistons) You should be able to get just about any kind of pad for these. They will fit the early spindles by ovaling out the mounting holes.
v8carreragts
v8carreragts

Posts : 330
Join date : 2009-06-08
Age : 64
Location : Tucson, AZ

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  xschop Sun Nov 28, 2010 8:48 pm

The iron Girling 4-pot jaguar calps are 48mm pistons. The rear calps are 43mm pistons.
The 48mm 4-pots would sink the stock MC quickly, but could probably be adjusted for a longer throw at the clevis. I wonder if anyone ran into that using the Jag 4-pots.

Also beware of slotting because the axial mounted bolts will allow the caliper to move around on the NA spindle ears if poorly done. This can cause piston sticking issues and deflected spindle mounting ears. Proper way to do the mod would be to drill the caliper ears and install offset inserts. I do like the fact that the jag calps use a 120mm wide pad. I researched these and have all the info on the 8g flash drive.
If it were me doing NA spindles on small diameter rotors like the NA's, I would use Vovo 240 4x38mm calps with the factory rotors.... The stock MC will not plunge deep and although the pads are 100mm wide, the caliper ears are 76mm spreadwidths and they fit under 14's (later turbo volvo 240's had 15's)......
xschop
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  v8carreragts Mon Nov 29, 2010 12:01 am

I think you are correct, they are 48mm.

Regardless, the Jag uses a 15/16" master cylinder which is the same as the front portion of all years of the 944. I recently added rear discs to my Grand Caravan as well as larger front discs and calipers. The volumes work out close to what my 944 will need with the Jag front calipers and I kept the original 15/16" master in my van. There is not much additional noticeable pedal travel on the van so I don't see that it will be a problem with the 944.
v8carreragts
v8carreragts

Posts : 330
Join date : 2009-06-08
Age : 64
Location : Tucson, AZ

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  xschop Mon Nov 29, 2010 5:05 am

Hey V8, do they fit the 15" Phonies? and how much do they weigh? Also wondered about backspacing (spindle ear to caliper spacing) running factory rotors.
xschop
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  v8carreragts Mon Nov 29, 2010 7:53 pm

I need to check this. I probably won't have time until the weekend though. As far as 15" Phonies. the closest I have are 15" Fuchs.

I have mine set up for factory rotors.

Here are a couple of pictures.

Jaguar front calipers Clampedfordrilling.th

Jaguar front calipers Difference.th

Jaguar front calipers Mountedonspindleassy.th
v8carreragts
v8carreragts

Posts : 330
Join date : 2009-06-08
Age : 64
Location : Tucson, AZ

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  xschop Mon Nov 29, 2010 7:58 pm

Do the pads make full rotor sweep contact? They look too high. Also it looks like no spacer between calps and spindle ears in the pics?
xschop
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  v8carreragts Mon Nov 29, 2010 8:03 pm

No spacers. The top of the pads are parallel to the edge of the rotor. So the pad has total contact.
v8carreragts
v8carreragts

Posts : 330
Join date : 2009-06-08
Age : 64
Location : Tucson, AZ

Back to top Go down

Jaguar front calipers Empty Phonie Knowledge

Post  xschop Mon Nov 29, 2010 9:17 pm

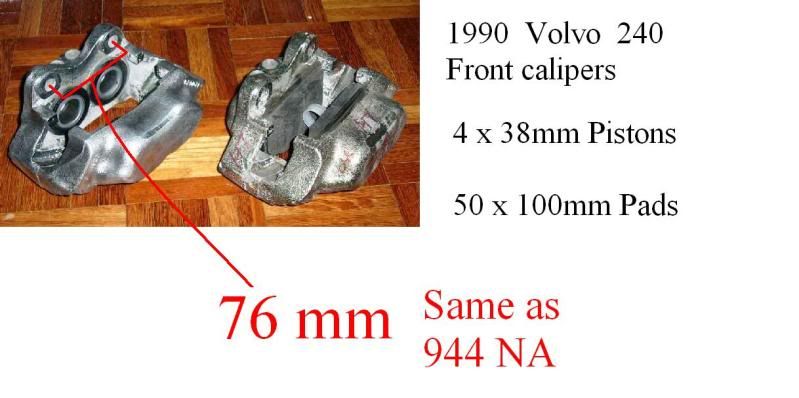

The 944 M10 x 1.0 lines bolt right up too. I always have suspected the spindle manufacturer for Volvo may be the spindle manufacturer for the 924-944-968....

Jaguar front calipers GirlingCalipersprepainting
xschop
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Jaguar front calipers Empty Volvo Calipers

Post  WillSoz Thu Dec 09, 2010 1:56 pm

xs, are those the calipers that use dual lines?

WillSoz

Posts : 8
Join date : 2009-06-24
Age : 40
Location : Beverly, Mass

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  xschop Thu Dec 09, 2010 2:07 pm

Yes IIRC, and they can use line splitters or be modded between the pistons (like the RX7 calps). I just don't like the fact that they are steel bodies.
xschop
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Jaguar front calipers Empty volve calipers

Post  storch Sat Dec 11, 2010 12:59 pm

So these volvo calipers bolt right in without any modifications? What does "installing line splitters or be modded between the pistons" entail?

Did some research and found that the abs models only have one hose inlet. Wonder if they would be a direct bolt on 4 piston alternative?

Thanks
Storch
storch
storch

Posts : 15
Join date : 2010-11-23
Age : 56
Location : Durham

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  xschop Sat Dec 11, 2010 4:26 pm

The Early BMW guys put those on their spindles. You MAY have to add a washer or two between thecalps and the Early 944 spindle which is exactly 76.5mm spreadwidth on the bolt centers. I am not sure, but I think you can plug off one of the m10x1.0 input ports and call it a day.
xschop
xschop

Posts : 2710
Join date : 2009-06-09
Location : OKC

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  antique944 Wed Mar 09, 2011 7:27 pm

just doing some searching online and found this site
/volvo240bigbrakes.htmlhttp://www.davebarton.com/volvo240bigbrakes.html

i wonder if the 240 brakes will fit on the early spindles, would the s60 r calipers fit, with the required adapter from RSI?

antique944

Posts : 6
Join date : 2011-02-17
Location : 89 944, 85 944

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  v2rocket Sun Mar 13, 2011 3:39 pm

am i reading this correctly, that volvo 240 4-piston calipers will bolt on to a 944 early NA spindle?

do you have dimensions off the 944 brake piston? i wonder how much braking would be improved with such a setup..maybe even weight saving?

v2rocket

Posts : 109
Join date : 2009-11-22

Back to top Go down

Jaguar front calipers Empty Re: Jaguar front calipers

Post  v2rocket Fri Nov 11, 2011 2:24 pm

BUMP please more infoooo

v2rocket

Posts : 109
Join date : 2009-11-22

Back to top Go down
